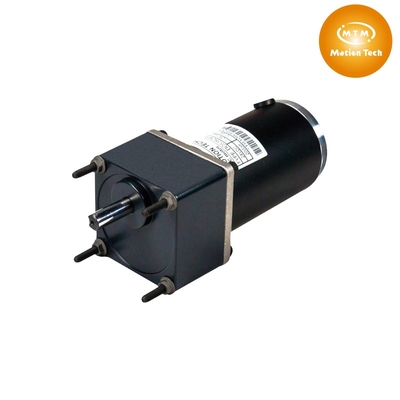

Aperçu /Produits/Moteur antigouttes/drip-proof brush [MTM] dc gear motor with power off brake 24v 120watt 3600 rpm [CE EN60601-1]

drip-proof brush [MTM] dc gear motor with power off brake 24v 120watt 3600 rpm [CE EN60601-1]

1 Piece
MOQ
$30.00(1 - 99 Pieces) $26.00(>=100 Pieces)
Prix
drip-proof brush [MTM] dc gear motor with power off brake 24v 120watt 3600 rpm [CE EN60601-1]
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Warranty: Other
Model Number: DC63M2436120R000
Usage: Car, Electric Bicycle, Home Appliance, Scooter
Type: Brush Motor
Torque: 2.6~50 kgf-cm
Construction: Permanent Magnet
Commutation: Brush
Protect Feature: Drip-proof
Speed(RPM): 3600rpm
Continuous Current(A): 1.5 A (no load)
Efficiency: 80%
Transaxle: 1:18
Certification: CE. RoHS
Use: Industrial
Informations de base
Certification: CE. RoHS
Model Number: DC63M2436120R000
Conditions de paiement et expédition
Packaging Details: One piece of Motor with transaxle and power off Brake in one carton.
Description de produit
Product Overview
MTM brush DC motor includes Industrial ,gearbox and transaxle motor series .
The diameter of motors has 63,71,82,90,105 and 124. Gearbox ,transaxle and electromagnetic are optional .
Besides application for power wheelchair and scooter , application can be medical bed, medical car ,lifting solution , agriculture machine even aerial working vehicle ..etc. We suggest a suitable motor according to customers' demands of application and provide appropriate suggestion for customers.
Product Configuration
Product Paramenters
Official Website: https://www.motiontech.com.tw/en/home_en/
Series Product SPEC
Diameter
63mm
IP Degree
IP44
Motor Output
20~100W
150W
200W
350W
Gearbox Ratio
3/3.6/5/6/7.5/9/10/12.5/15/18/20/25/30/36/40/50/60/75/90/100/120/150/180:1
RPM
1500~5000RPM
Rated Voltage
12~110V

Rated Torque
2.6~50 kgf-cm
About Brush Series
Standard DC63 products:20~100W Standard DC71 products:30~300W Standard DC82 products:80~450W Standard DC90 products:80~500W
Standard DCA5 products:200~900W Standard DCC4 products:200~1200W
Standard EC63 products:80~270W Standard EC71 products:80~300W Standard EC82 products:150~500W
Standard EC90 products:120~600W
Standard EC92 products:250~600W
Standard EC94 products:250~500W Standard ECA0 products:500~900W Standard ECA5 products:500~950W Standard ECC4 products:350~1300W
Standard SC63 products:80~270W
Standard SC71 products:100~300W
Standard SC82 products:150~450W
Standard SC90 products:250~500W
Standard SC92 products:300~500W
Standard SC94 products:250~500W
Standard SCA5 products:500~950W
Standard SCC4 products:600~1300W
Official Website: https://www.motiontech.com.tw/en/home_en/
Applications
Brush motor is our root, Servo motor and brushless motor is our future.
The main product of MTM is for vehicles with low voltage DC power. If you are looking for a DC power servo motor, BLDC, brush motor or gearbox, MTM is your best choice.
Company Profile
About MTM
Motion Tech is the leading role in motor industry in Taiwan and leading brand of medical electric wheelchair, E-scooter all over the world.. We devote to manufacture PMDC motors and BLDC motors since 2002.
The main products of MTM is power module which included motor, gearbox and motor controller. MTM provide customization service which included design, test and manufacture to create a product with quality, efficiency and reliability.
Official Website: https://www.motiontech.com.tw/en/home_en/
